How To Assemble Foundationless Frames

Assembling or building foundationless frames for bee hives is pretty easy to do and can save you about $1 per frame on cost. But can lead to $100 in frustration if you don't manage them well. Click here to learn more on managing foundationless frames. We have made several variation of foundationless frames in the past few years and have landed on our favorite.




These are the variations we have tried:

  1. Removed, rotated and nailed wedge from a wedge top bar in place
  2. Several standard popsicle sticks glued into grooved top bar
  3. Paint stir sticks, left whole and glued into grooved top bar
  4. Paint stir sticks, split lengthwise and glued into grooved top bar
  5. Paint stir sticks, split and glued into grooved bottom bar to reduce hive beetles
  6. Fishing line and wire run through medium frames to give comb extra support

We tried all of those variations, but our favorite way to make foundationless frames is with a grooved top bar, a thin wooden starter strip and a solid bottom bar. This combination is the ideal way to use foundationless frames in a Langstroth hive. We like solid bottom bars for foundationless frames because they do not give small hive beetles a place to harbor. The more nooks in a hive, the more space beetles have to live. If every frame had a open, grooved bottom bar, there would be a lot of space for beetles to live.

Here is how we assemble our foundationless frames.

Step 1 - Cut clear (knot free) 3/4-inch thick wood boards into strips the length of the groove and just narrower than the width of the groove in the top bar

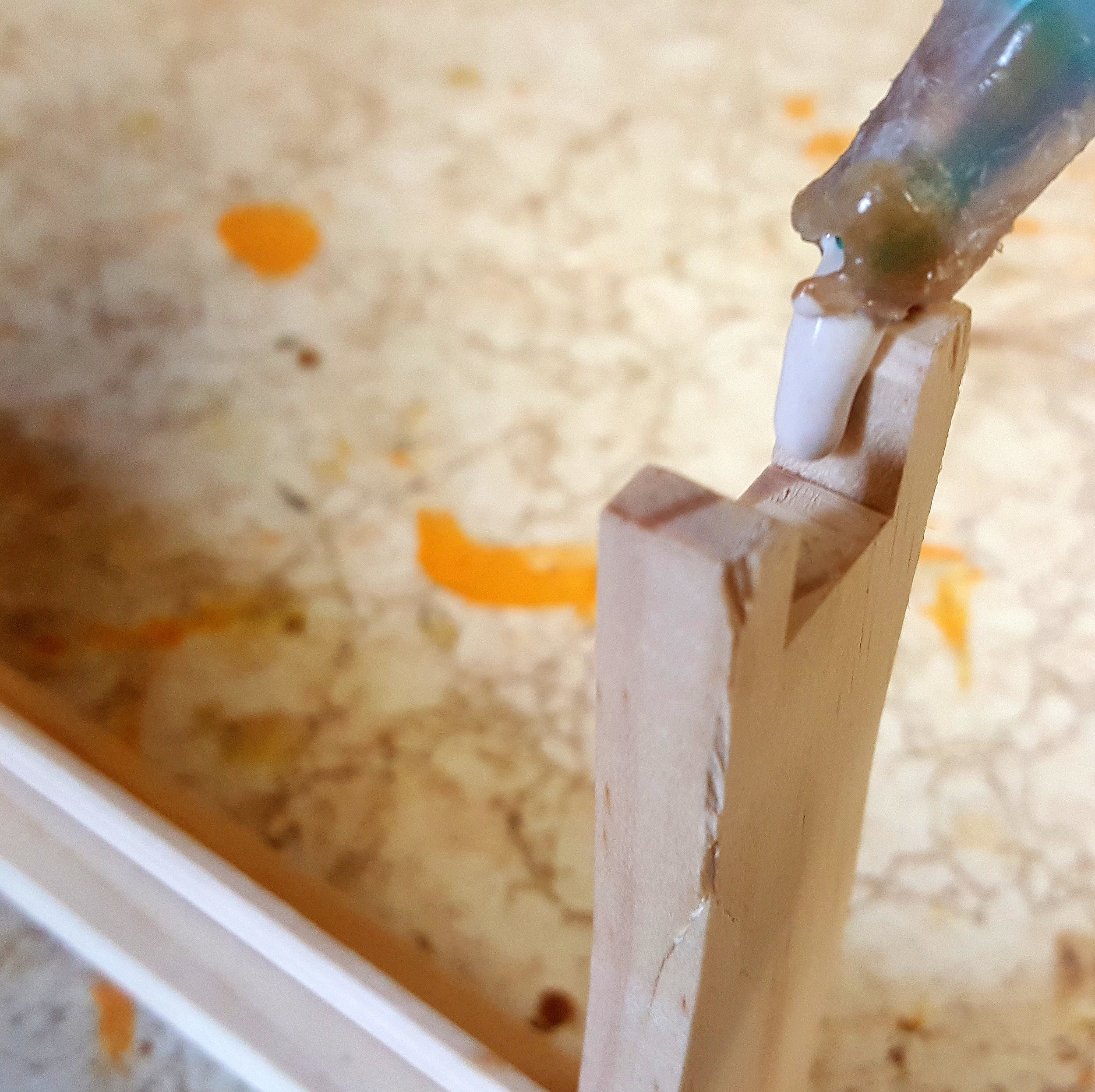

Step 2 -Line each grooved top bar side by side, with the groove facing up. Place several drops of wood glue the length of each grove.




3 - Press a starter strip into the length of each groove, pressing firmly into the groove (be sure not to place strip beyond edges of groove). Let dry.






4- Spread wood glue into the wide slot of each side bar and press onto either side of the top bar. Secure with nails or staples.




5 - Spread wood glue onto the narrow side of each side bar and press bottom bar onto either side of the side bars. Secure with nails or staples.




Small hive beetles are a problem in much of the southern United States. We are based in Birmingham, AL and have been dealing with small hive beetles for a long time. We have found the best way to prevent a problem is to keep beetle numbers low. There are several ways to keep their numbers low, but minimizing  spaces for them to hide is a great place to start. If buying grooved bottom frames (which typically come with grooved top frames), it is good practice to fill the bottom groove with something.

We have found 3 ways to do this effectively. The 1st is to make a solid bottom bar to replace it, which is more work. We have them here if you are interested. 2nd option is to cut another thin piece of wood to fit in the groove and glue it in similar to the top bar. Leaving as little wood protruding above the bottom bar as possible. The 3rd option is to place a paint stir stick in the bottom bar groove with glue, then snap it off flush with the bottom bar.

Happy Beekeeping
