Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes-Supplies
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes-Supplies
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes-Supplies
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes-Supplies
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes
Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes

Deep 9 1/8 Inch Langstroth Frame, Wedged Top / Split Bottom with Holes

Regular price $1.99
Unit price  per
Payment methods
  • American Express
  • Apple Pay
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Protected SSL Encryption

Protected SSL Encryption

Product Details

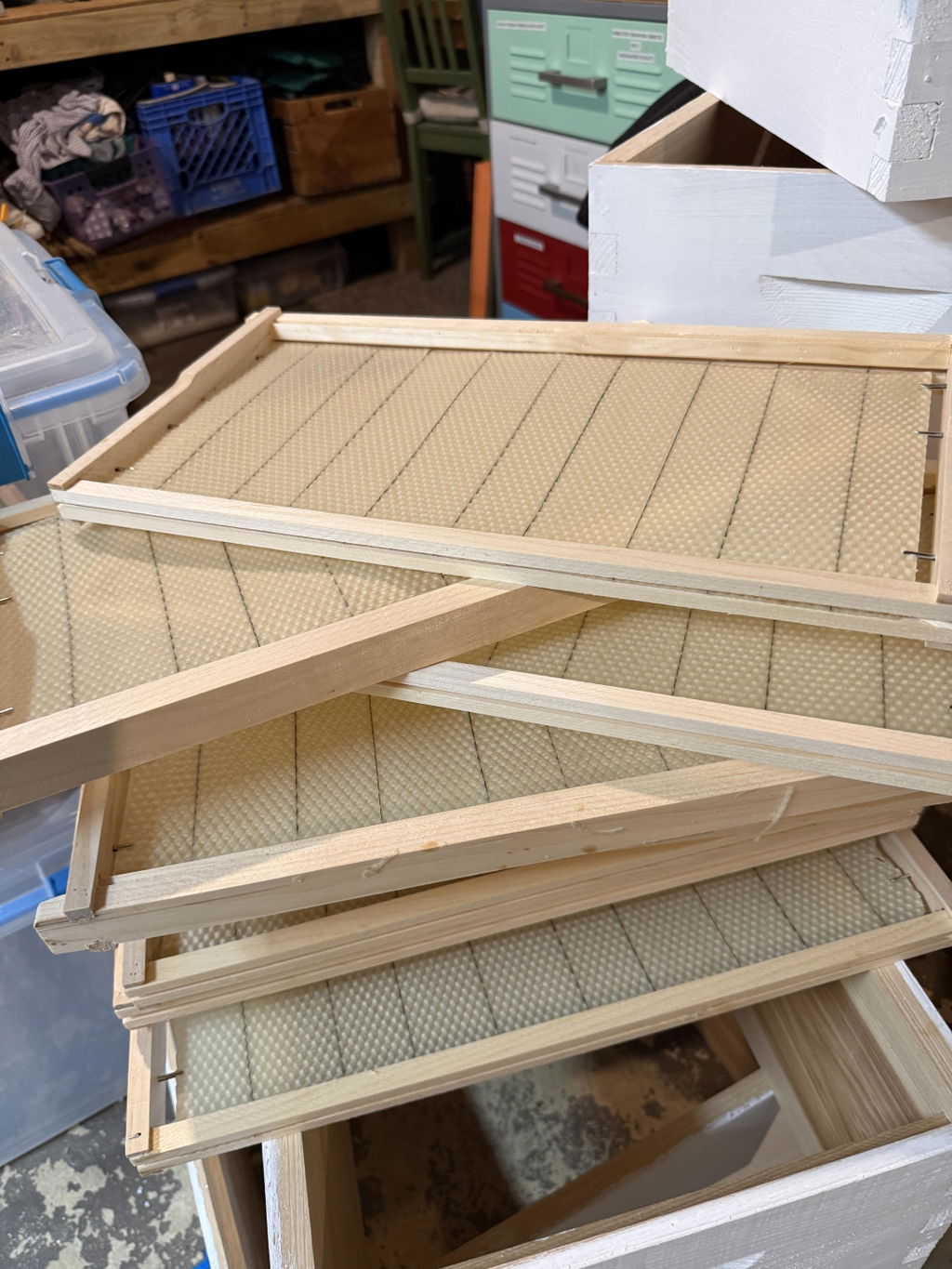

HOW IT WORKS: Each frame comes with 4 separate pieces, a wedged top bar, split bottom bar, and 2 sidebars with holes that fit together with glue, nails or staples to form the frame. In each frame fits a sheet of the foundation for the bees to build their comb on top of. Each frame is designed to fit inside a deep box in just the right way so it can be easily removed and inspected by the beekeeper.

DEEP / BROOD BOXES: Deep frames are most commonly used inside the deep/ brood boxes where the queen will lay eggs and space the bees will live in over winter. The large surface area of the frame gives the queen more space to lay eggs without having to move from one frame to another.

BEE SPACE: Our frames are designed in a very specific way that works well for the bees and also the beekeeper. There is a gap that bees prefer inside the hive between two sheets of comb and it is called the bee space. When frames are placed in the box and touching each other, they spaced exactly the way the bees want it because of the innovative design of the frames.

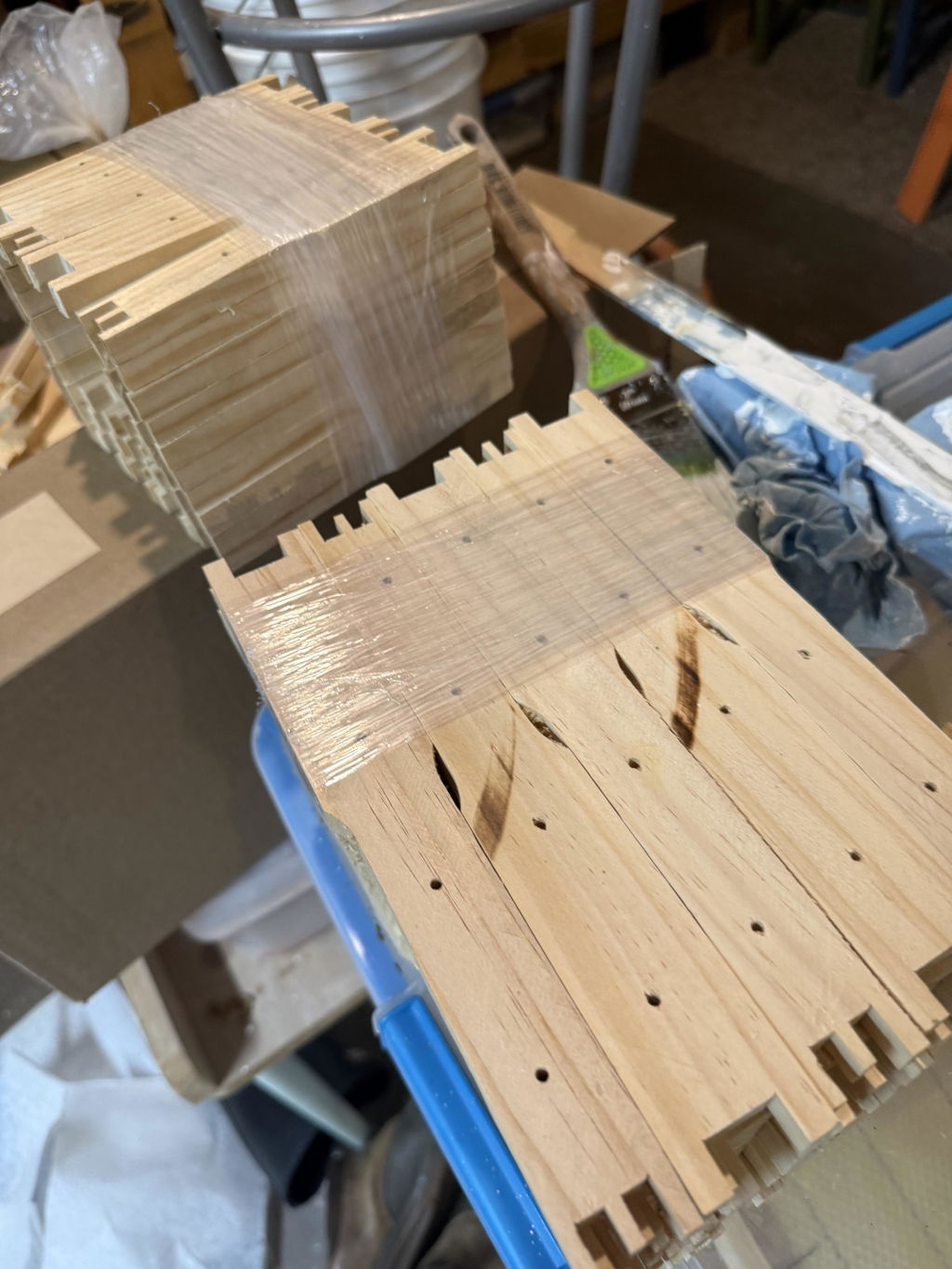

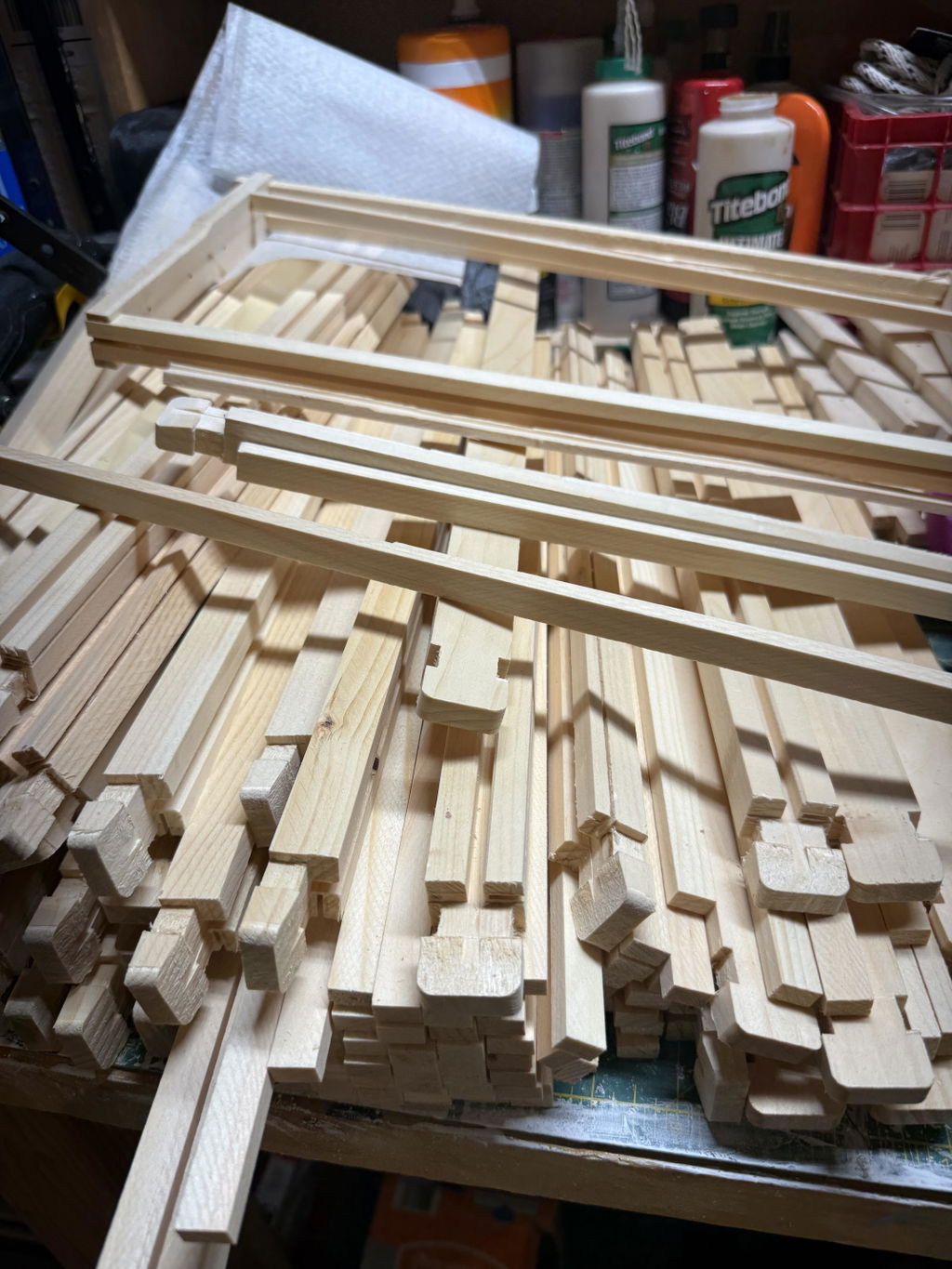

ASSEMBLY: These frames are sold unassembled, but can be assembled using typical hand tools everyone has. A hammer, nails, and a good quality wood-glue are all that is needed to assemble the frames securely. Good construction is key so the frames do not fall apart in the hive.

GROOVED TOP/ GROOVED BOTTOM: These frames are designed with a wedge on the underside of the top bar and with a split bottom on the bottom bar. The wedge on the top bar is removable so that it can easily hold the hooks that come on our 100% beeswax foundation. The split bottom on the bottom bar allows the foundaiton to rest easily in the gap to prevent bowing of the foundation.

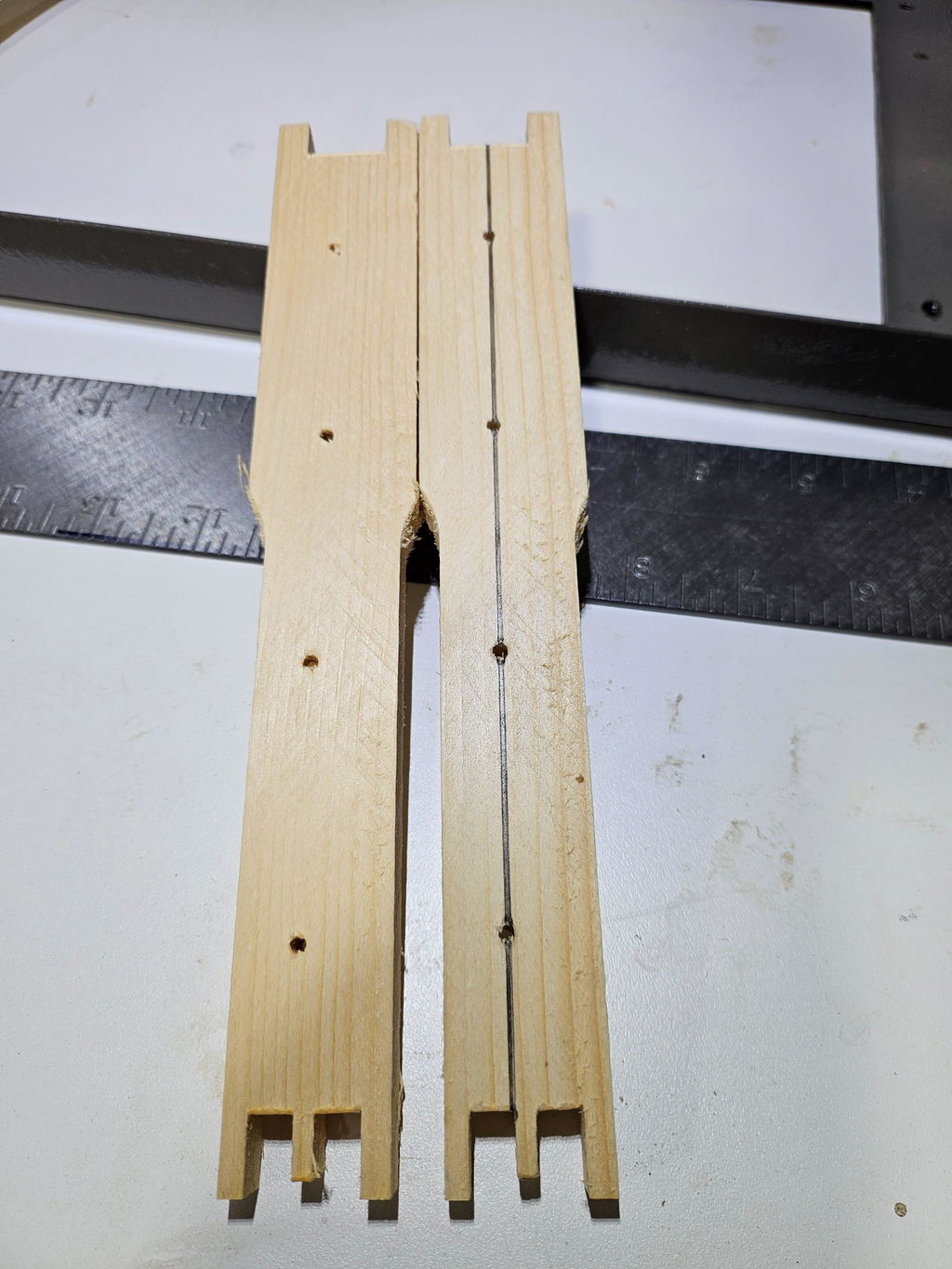

The side bars include holes in them so the foundation can have additional horizontal wires threaded through the foundation to give them extra support in the hive. Honey and comb can be very heavy, so having extra horizontal cross wires can help keep the comb from collapsing.

Fits 100% beeswax deep foundation with wires.
Compatible with this foundation.
See all our other tools for installing these frames by clicking here.
